KH-15

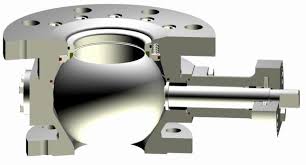

This PERRIN ball valve design features a two piece, bolted body and a trunnion mounted ball. The seat system and the stem packing are spring loaded, resulting in very good sealing properties and a constant torque not influenced by temperature fluctuations. By using the larger inlet-flange the clearance volume above the ball can be reduced to a minimum.
The actuator mounting flange corresponds to the NAMUR recommendations with dimensions to DIN/ISO 5211.
Stem extensions, locking devices and actuators with accessories can be field mounted at any time.
| Salient Features | |
|---|---|
| Size Range | 1⁄2 - 300 inch / DN 15 – 300 |
| Pressure Class | ANSI Class 150 – 2500 |
| Temperature Range | -60°C to 450°C |
| Testing Standards | API 598, EN 12266 – 1/2 |
| Certificates | ‘TA – Luft’ Low Fugitive Emission |
| Actuator Mounting as per | ISO 5211 |
| Design Standards | Fire safe API 607, API 6D, BS 6755 and ISO 10497 |
| Stem | Blow out proof stem, Live loaded stem packing, Spring loaded seat system |
