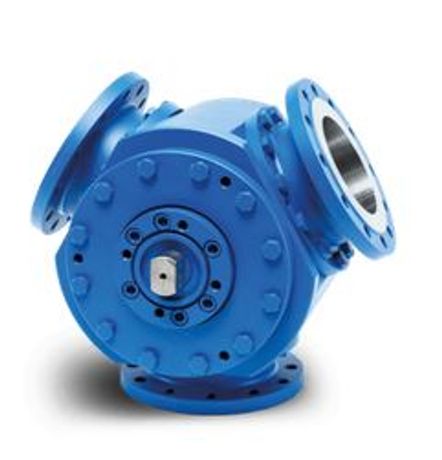

KH-22
Flanged 120° diverter ball valves trunnion type with mobile seat seals, this valves has been successfully installed under polymer and powder service medium for Polypropylene and PE projects globally. This valves are supplied with manually operated gearbox or automated with pneumatic or hydraulic actuators as per customer specifications.
Perrin KH 22 M ball valve has twin bearing ball with integral stem and split body housing. The ball valve has anti-static design. Stem packing and sealing are “TA – Luft” certified for low fugitive emissions.
| Salient Features | |
|---|---|
| Size Range | 1⁄2 - 20 inch / DN 15 – 500 |
| Pressure Class | ANSI Class 150 – 1500 |
| Temperature Range | -60°C to 550°C |
| Testing Standards | API 598, EN 12266 – 1/2 |
| Certificates | ‘TA – Luft’ Low Fugitive Emission |
| Actuator Mounting as per | ISO 5211 |
| Design Standards | API 6D, API 608, EN 12516, AD-2000, ASME B 16.34, EN 1983 |
| Stem | Ball with integral stem and twin bearing, Live loaded stem packing, Spring loaded seat system |
