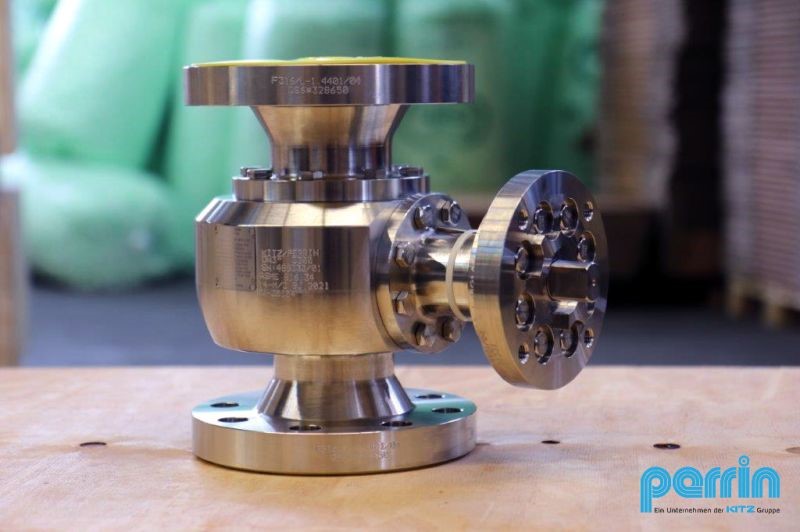

KH-14 M

Process industries demands some critical requirements of ball valves for its continuous operations, Perrin 14 – M ball valves is a 2 – way split body design with 3 point redundant position indication. This provides maximum safety for position indication of the valve and hence complete process.

This ball valves can work efficiently in various service applications such as Warm – up, Quench and Drain, Blow-down, bypass, Overhead vapour or Coker drum isolation.

Design of ball valve features a two piece, bolted body and a trunnion mounted ball. The metallic seat system and the stem packing are spring loaded, resulting in very good sealing properties and a constant torque not influenced by temperature fluctuations.

Stem extensions, locking devices and actuators with accessories can be field mounted at any time.
